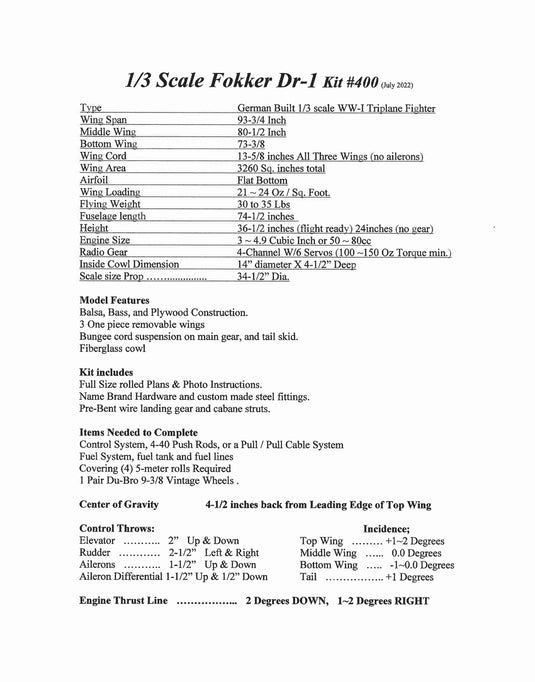

Upgrade to 1/3 Fokker Dr-1 Triplane Kit Package Type German Built 1/3 scale WW-I Triplane Fighter
Wing Span 93-3/4 Inch
Middle Wing 80-1/2 Inch
Bottom Wing 73-3/8
Wing Cord 13-5/8 inches All Three Wings (no ailerons)
Wing Area 3260 Sq. inches total
Airfoil Flat Bottom
Wing Loading 21 ~ 24 Oz / Sq. Foot.
Flying Weight 30 to 35 Lbs
Fuselage length 74-1/2 inches
Height 36-1/2 inches (flight ready) 24inches (no gear)
Engine Size 3 ~ 4.9 Cubic Inch or 50 ~ 80cc
Radio Gear 4-Channel W/6 Servos (100 ~150 Oz Torque min.)
Inside Cowl Dimension 14” diameter X 4-1/2” Deep
Scale size Prop ……............... 34-1/2” Dia.
Model Features
Balsa, Bass, and Plywood Construction.
3 One piece removable wings
Bungee cord suspension on main gear, and tail skid.
Fiberglass cowl
Kit includes
Full Size rolled Plans & Photo Instructions.
Name Brand Hardware and custom made steel fittings.
Pre-Bent wire landing gear and cabane struts.
Items Needed to Complete
Control System, 4-40 Push Rods, or a Pull / Pull Cable System
Fuel System, fuel tank and fuel lines
Covering (4) 5-meter rolls Required
1 Pair Du-Bro 9-3/8 Vintage Wheels .
Center of Gravity 4-1/2 inches back from Leading Edge of Top Wing
Control Throws: Incidence;
Elevator ……….. 2” Up & Down Top Wing ……… +1~2 Degrees
Rudder ………… 2-1/2” Left & Right Middle Wing …... 0.0 Degrees
Ailerons ……….. 1-1/2” Up & Down Bottom Wing ….. -1~0.0 Degrees
Aileron Differential 1-1/2” Up & 1/2” Down Tail …………….. +1 Degrees
Engine Thrust Line ……………... 2 Degrees DOWN, 1~2 Degrees RIGHT

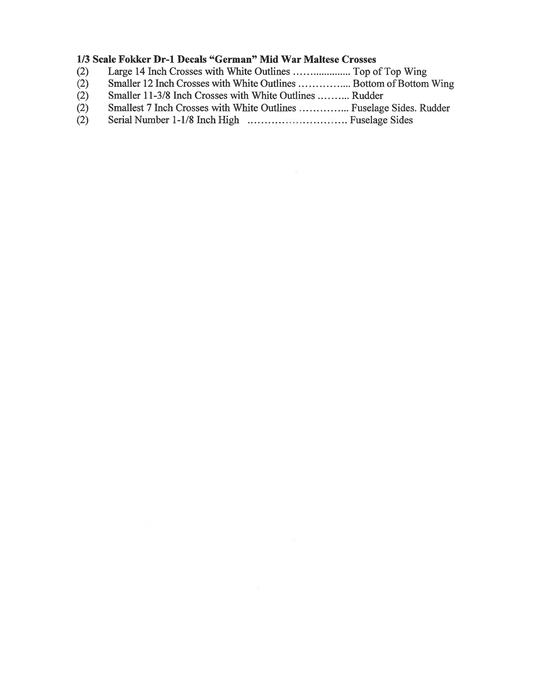

1/3 Scale Fokker Dr-1 Decals “German” Mid War Maltese Crosses
(2) Large 14 Inch Crosses with White Outlines …….............. Top of Top Wing
(2) Smaller 12 Inch Crosses with White Outlines ………….... Bottom of Bottom Wing
(2) Smaller 11-3/8 Inch Crosses with White Outlines .……... Rudder
(2) Smallest 7 Inch Crosses with White Outlines …………... Fuselage Sides. Rudder
(2) Serial Number 1-1/8 Inch High .………………………. Fuselage Sides
