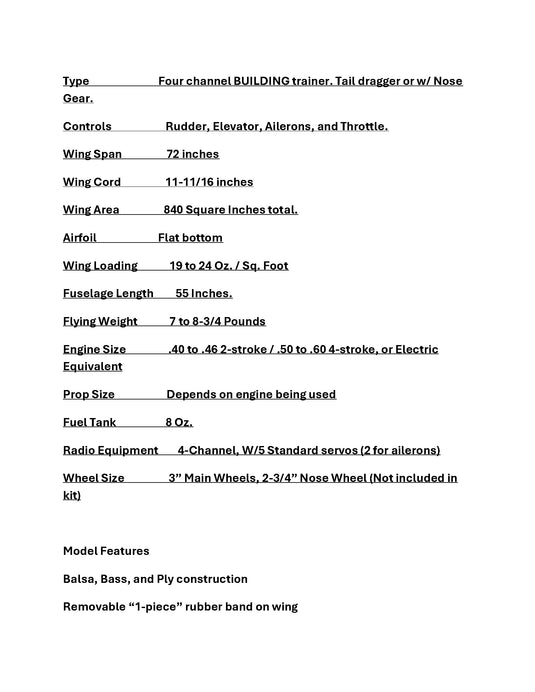

Type Four channel BUILDING trainer. Tail dragger or w/ Nose Gear.
Controls Rudder, Elevator, Ailerons, and Throttle.
Wing Span 72 inches
Wing Cord 11-11/16 inches
Wing Area 840 Square Inches total.
Airfoil Flat bottom
Wing Loading 19 to 24 Oz. / Sq. Foot
Fuselage Length 55 Inches.
Flying Weight 7 to 8-3/4 Pounds
Engine Size .40 to .46 2-stroke / .50 to .60 4-stroke, or Electric Equivalent
Prop Size Depends on engine being used
Fuel Tank 8 Oz.
Radio Equipment 4-Channel, W/5 Standard servos (2 for ailerons)
Wheel Size 3” Main Wheels, 2-3/4” Nose Wheel (Not included in kit)
Balsa, Bass, and Ply construction
Removable “1-piece” rubber band on wing

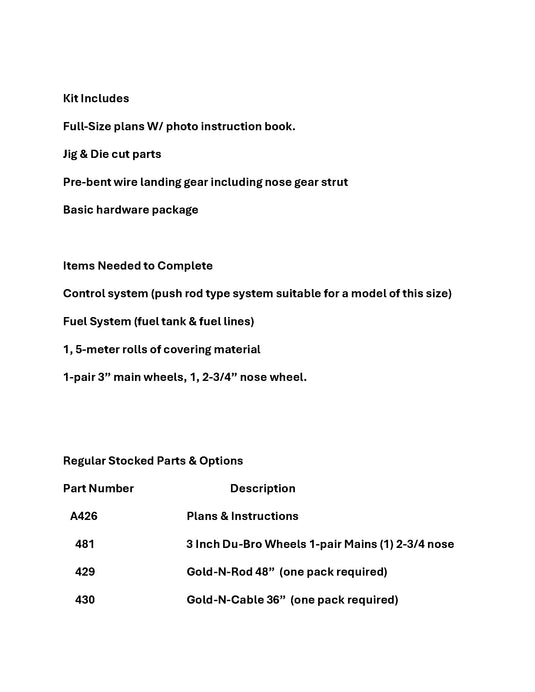

Full-Size plans W/ photo instruction book.
Jig & Die cut parts
Pre-bent wire landing gear including nose gear strut
Basic hardware package
Items Needed to Complete
Control system (push rod type system suitable for a model of this size)
Fuel System (fuel tank & fuel lines)
1, 5-meter rolls of covering material
1-pair 3” main wheels, 1, 2-3/4” nose wheel.
Regular Stocked Parts & Options
Part Number Description
A426 Plans & Instructions
481 3 Inch Du-Bro Wheels 1-pair Mains (1) 2-3/4 nose
429 Gold-N-Rod 48” (one pack required)
430 Gold-N-Cable 36” (one pack required)

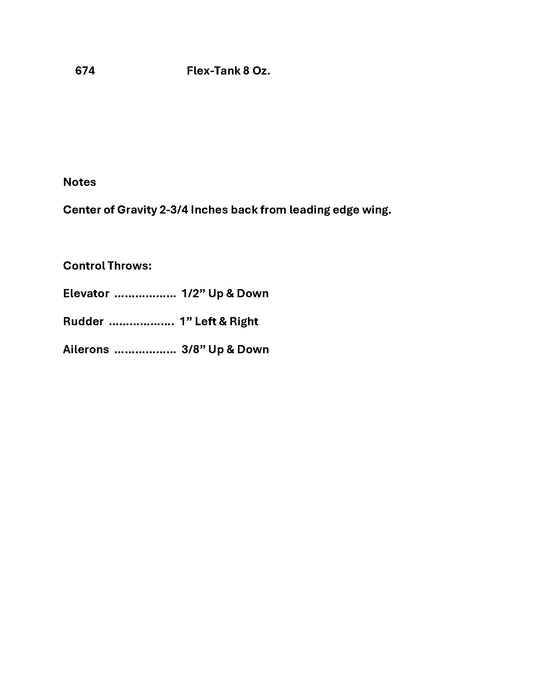

674 Flex-Tank 8 Oz.
Center of Gravity 2-3/4 Inches back from leading edge wing.
Elevator ……………… 1/2” Up & Down
Rudder ………………. 1” Left & Right
Ailerons ……………… 3/8” Up & Down
