Now Laser Cut Parts
|

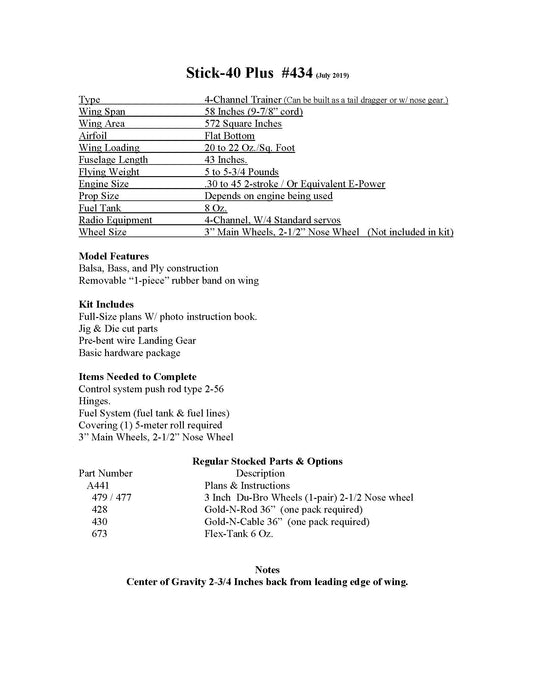

Type 4-Channel Trainer (Can be built as a tail dragger or w/ nose gear.) Wing Span 58 Inches (9-7/8” cord) Wing Area 572 Square Inches Airfoil Flat Bottom Wing Loading 20 to 22 Oz./Sq. Foot Fuselage Length 43 Inches. Flying Weight 5 to 5-3/4 Pounds Engine Size .30 to 45 2-stroke / Or Equivalent E-Power Prop Size Depends on engine being used Fuel Tank 8 Oz. Radio Equipment 4-Channel, W/4 Standard servos Wheel Size 3” Main Wheels, 2-1/2” Nose Wheel (Not included in kit)
Model Features: Balsa, Bass, and Ply construction Removable “1-piece” rubber band on wing
Kit Includes: Full-Size plans W/ photo instruction book. Laser Cut Parts Pre-bent wire Landing Gear Basic hardware package
Items Needed to Complete: Control system push rod type 2-56 Hinges. Fuel System (fuel tank & fuel lines) Covering (1) 5-meter roll required 3” Main Wheels, 2-1/2” Nose Wheel #64 Rubber Band
Regular Stocked Parts & Options Part Number Description A441 Plans & Instructions 479 / 477 3 Inch Du-Bro Wheels (1-pair) 2-1/2 Nose wheel 428 Gold-N-Rod 36” (one pack required) 430 Gold-N-Cable 36” (one pack required) 673 Flex-Tank 6 Oz.
Notes Center of Gravity 2-3/4 Inches back from leading edge of wing.

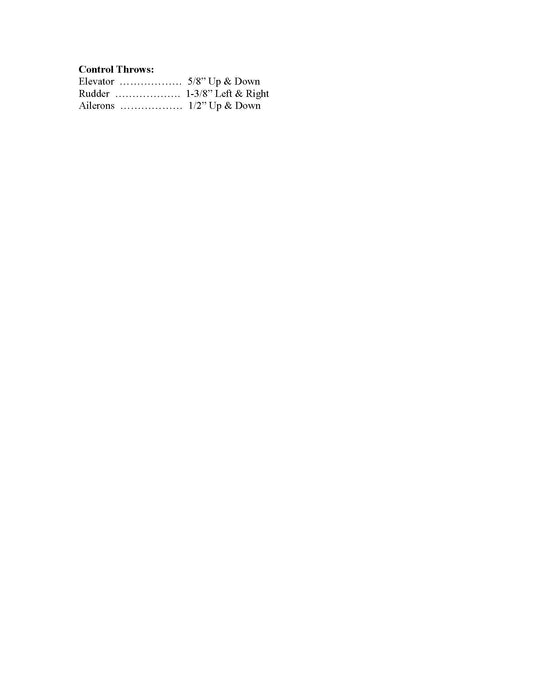

Control Throws: Elevator ……………… 5/8” Up & Down Rudder ………………. 1-3/8” Left & Right Ailerons ……………… 1/2” Up & Down |
