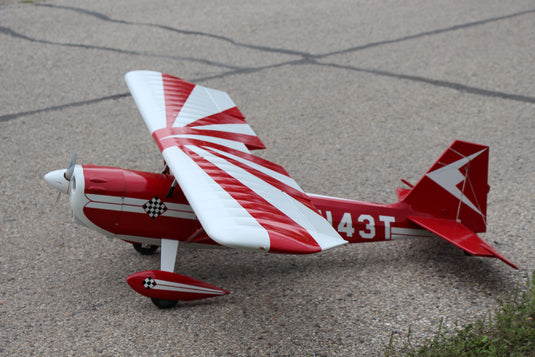

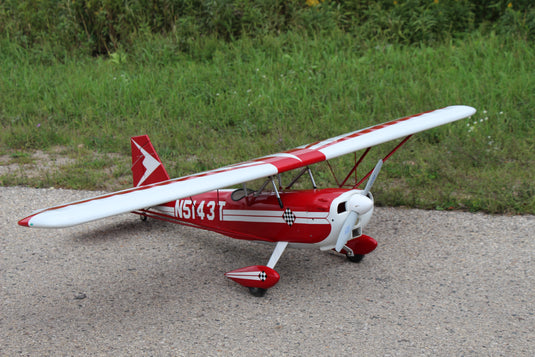

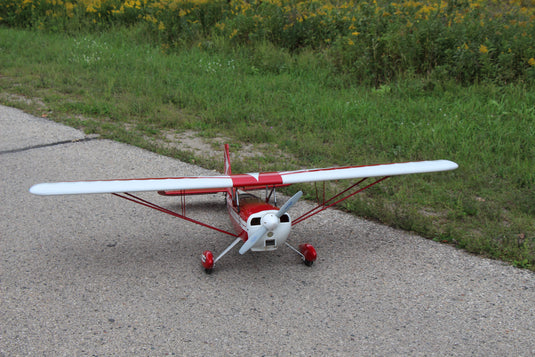

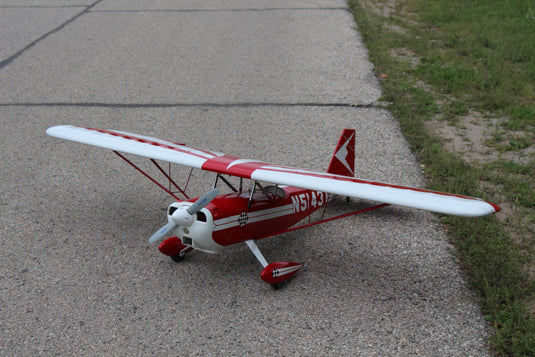

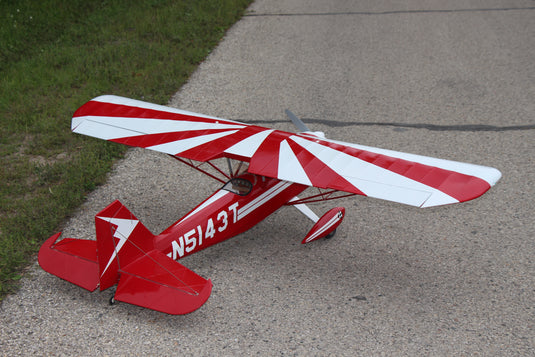

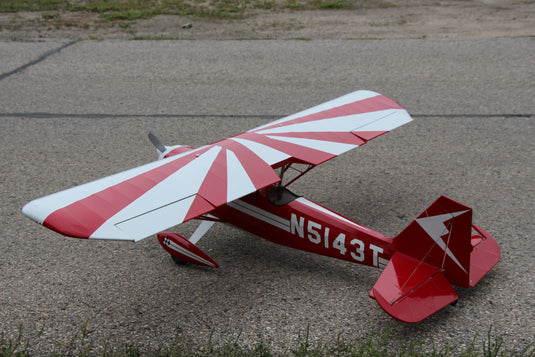

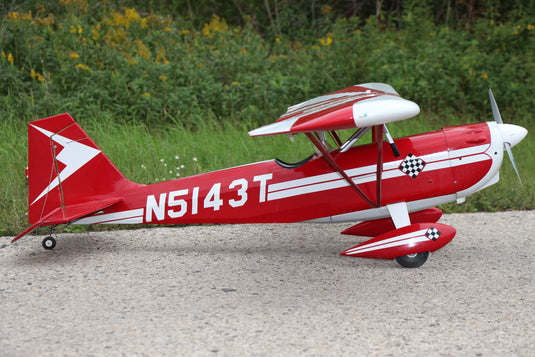

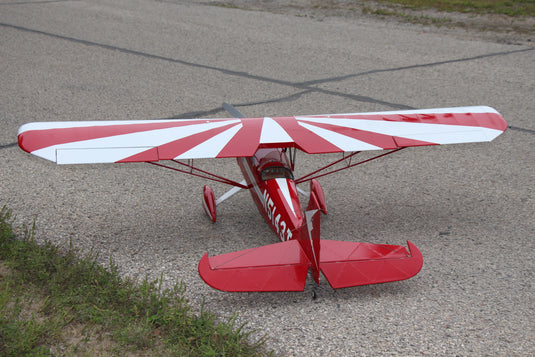

The Citabria Pro was developed from Bellanca's famous two place tandem sport aerobatic Citabria. The name "Citabria", is a clever backwards spelling of the word "airbatic". Our kit of the model is an absolute delight to fly. Although the model is capable of practically any kind of aerobatics, most modelers we talked to found that they really enjoyed the Citabria Pro's easy handling characteristics. It is a great first scale model because it builds quickly, looks great, and flies even better! The kit has 10 different Laser cut sheets, several jig-cut parts which have all been designed for quick and easy building. Our new 36 page, photo illustrated instruction manual contains over 140 photos and illustrations to guide you through all phases of the construction of the model. The construction of the model has been simplified for faster building. If you are looking for a great flying model that isn't just another ordinary ho-hum sport model, check out the Pro!
Type Mid-60’s scale Parasol Wing aerobatic aircraft
Wing Span 80 Inches (14” cord)
Wing Area 1120 Square Inches total.
Airfoil Semi-Symmetrical
Wing Loading 23 Oz. / Sq. Foot
Fuselage Length 54-1/2 Inches.
Flying Weight 11 to 12 Pounds
Engine Size 20 ~ 25cc Gas, .60 to 1.08 2-stroke, .90 to 1.20 4-stroke
Prop Size Depends on engine being used
Fuel Tank 12~16 Oz. (compatible with fuel requirements of engine)
Radio Equipment 4-Channel W/ 5 servos min.
Servo Requirements High torque 60~70 In./Oz. Servos
Wheel Size 3-1/2” main, 1” tail (Not included in kit)
Cowl Width 8 Inches X 6-3/4" Deep
Firewall 6-1/4 W X 6 Inches High
Model Features
Balsa, Bass, and Ply construction
Removable “1-piece” bolt on wing
Kit Includes
Full-Size plans W/ photo instruction book.
Jig & die cut parts
Pre-bent wire cabane struts
Basic hardware package
ABS plastic cowl and wheel pants.
Pre-Formed Aluminum landing gear
Decal sheet
Items Needed to Complete
Control system (push rod type or pull / pull cable system suitable for a model of this size)
Fuel System (fuel tank & fuel lines) compatible with the fuel requirements of engine. Covering (2) 5-meter rolls required
Regular Stocked Parts & Options
Part Number Description
D451 Decal Set
A451 Plans & Instructions
480 3-1/2 Du-Bro Treaded Wheels (1-pair)
429 Gold-N-Rod 48” (one pack required)
430 Gold-N-Cable 36” (one pack required)
678 16 Oz. Fuel Tank (For Glow Fuel use ONLY)
Notes
Center of Gravity 4-1/2 Inches back from leading edge of wing.
