SKU: 445

Laker

Vendor Balsa USA
Regular price $246.36 USD
Sale price $246.36 USD Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.
In stock, 194 units

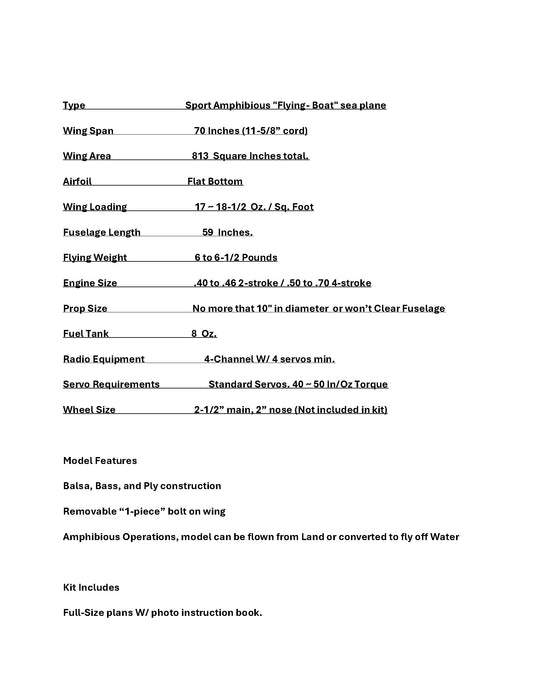

Type                                               Sport Amphibious "Flying- Boat" sea plane

Wing Span                                      70 Inches (11-5/8” cord)

Wing Area                                      813  Square Inches total.

Airfoil                                             Flat Bottom

Wing Loading                                17 ~ 18-1/2  Oz. / Sq. Foot

Fuselage Length                             59  Inches.

Flying Weight                                6 to 6-1/2 Pounds

Engine Size                                    .40 to .46 2-stroke / .50 to .70 4-stroke

Prop Size                                        No more that 10" in diameter  or won’t Clear Fuselage

Fuel Tank                                       8  Oz.

Radio Equipment                            4-Channel W/ 4 servos min.

Servo Requirements                       Standard Servos. 40 ~ 50 In/Oz Torque

Wheel Size                                     2-1/2” main, 2” nose (Not included in kit)



Model Features

Balsa, Bass, and Ply construction

Removable “1-piece” bolt on wing

Amphibious Operations, model can be flown from Land or converted to fly off Water



Kit Includes

Full-Size plans W/ photo instruction book.

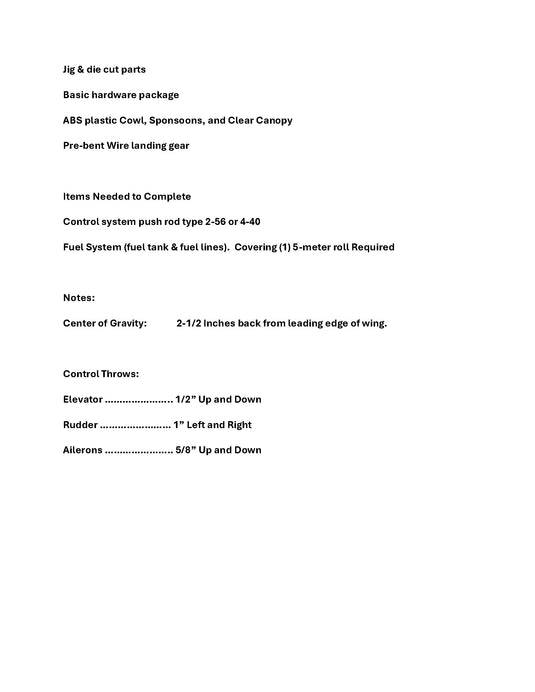

Jig & die cut parts

Basic hardware package

ABS plastic Cowl, Sponsoons, and Clear Canopy

Pre-bent Wire landing gear



Items Needed to Complete

Control system push rod type 2-56 or 4-40

Fuel System (fuel tank & fuel lines).  Covering (1) 5-meter roll Required



Notes:

Center of Gravity:              2-1/2 Inches back from leading edge of wing.



Control Throws:

Elevator ………………….. 1/2” Up and Down

Rudder …………………… 1” Left and Right

Ailerons ………………….. 5/8” Up and Down
