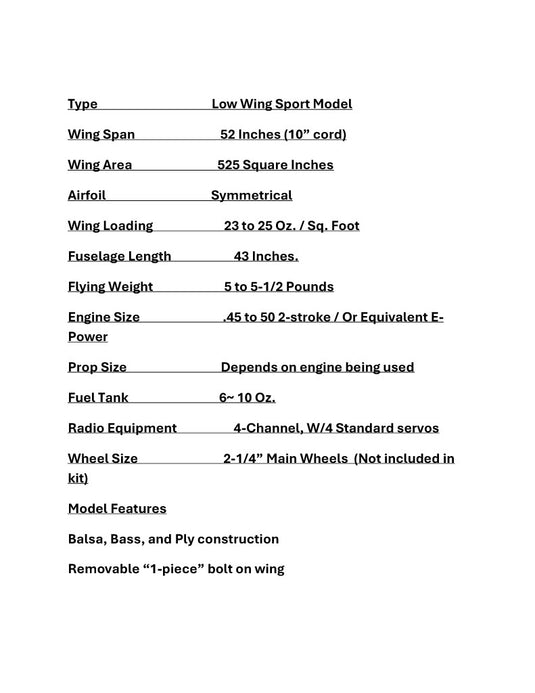

Type Low Wing Sport Model Wing Span 52 Inches (10” cord) Wing Area 525 Square Inches Airfoil Symmetrical Wing Loading 23 to 25 Oz. / Sq. Foot Fuselage Length 43 Inches. Flying Weight 5 to 5-1/2 Pounds Engine Size .45 to 50 2-stroke / Or Equivalent E-Power Prop Size Depends on engine being used Fuel Tank 6~ 10 Oz. Radio Equipment 4-Channel, W/4 Standard servos Wheel Size 2-1/4” Main Wheels (Not included in kit)
Model Features Balsa, Bass, and Ply construction Removable “1-piece” bolt on wing

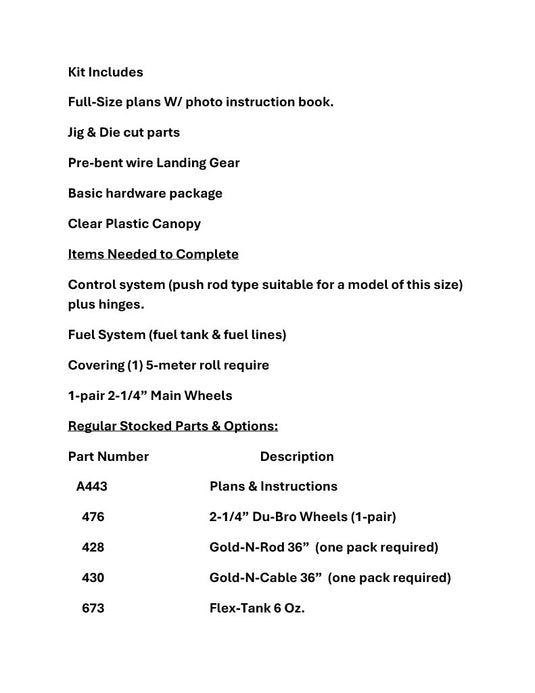

Kit Includes Full-Size plans W/ photo instruction book. Jig & Die cut parts Pre-bent wire Landing Gear Basic hardware package Clear Plastic Canopy
Items Needed to Complete Control system (push rod type suitable for a model of this size) plus hinges. Fuel System (fuel tank & fuel lines) Covering (1) 5-meter roll require 1-pair 2-1/4” Main Wheels
Regular Stocked Parts & Options Part Number Description A443 Plans & Instructions 476 2-1/4” Du-Bro Wheels (1-pair) 428 Gold-N-Rod 36” (one pack required) 430 Gold-N-Cable 36” (one pack required) 673 Flex-Tank 6 Oz.

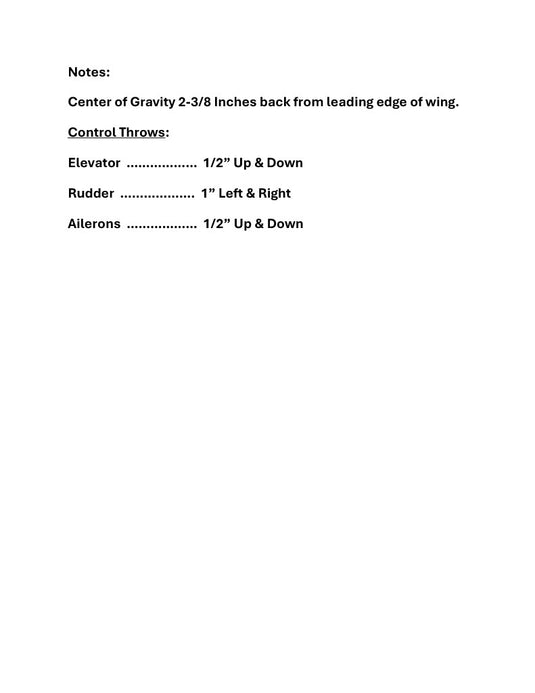

Notes: Center of Gravity 2-3/8 Inches back from leading edge of wing.
Control Throws: Elevator ……………… 1/2” Up & Down Rudder ………………. 1” Left & Right Ailerons ……………… 1/2” Up & Down |
