Smoothie XL

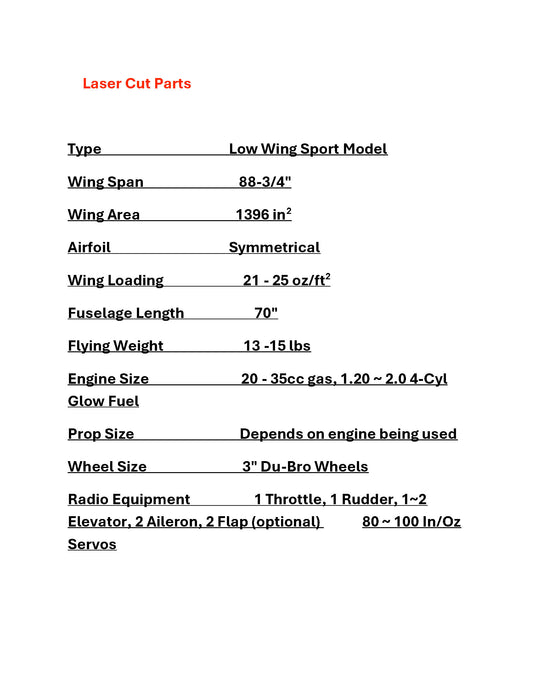

Type                                        Low Wing Sport Model

Wing Span                              88-3/4"

Wing Area                              1396 in²

Airfoil                                     Symmetrical

Wing Loading                         21 - 25 oz/ft²

Fuselage Length                      70"

Flying Weight                         13 -15 lbs

Engine Size                             20 - 35cc gas, 1.20 ~ 2.0 4-Cyl Glow Fuel

Prop Size                                 Depends on engine being used

Wheel Size                              3" Du-Bro Wheels

Radio Equipment                    1 Throttle, 1 Rudder, 1~2 Elevator, 2 Aileron, 2 Flap (optional)             80 ~ 100 In/Oz  Servos

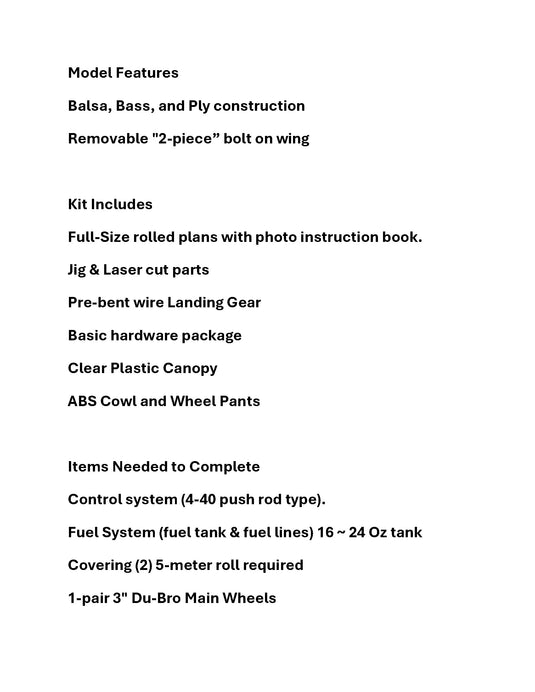

Model Features

Balsa, Bass, and Ply construction

Removable "2-piece” bolt on wing

Kit Includes

Full-Size rolled plans with photo instruction book.

Jig & Laser cut parts

Pre-bent wire Landing Gear

Basic hardware package

Clear Plastic Canopy

ABS Cowl and Wheel Pants

Items Needed to Complete

Control system (4-40 push rod type).

Fuel System (fuel tank & fuel lines) 16 ~ 24 Oz tank

Covering (2) 5-meter roll required

1-pair 3" Du-Bro Main Wheels

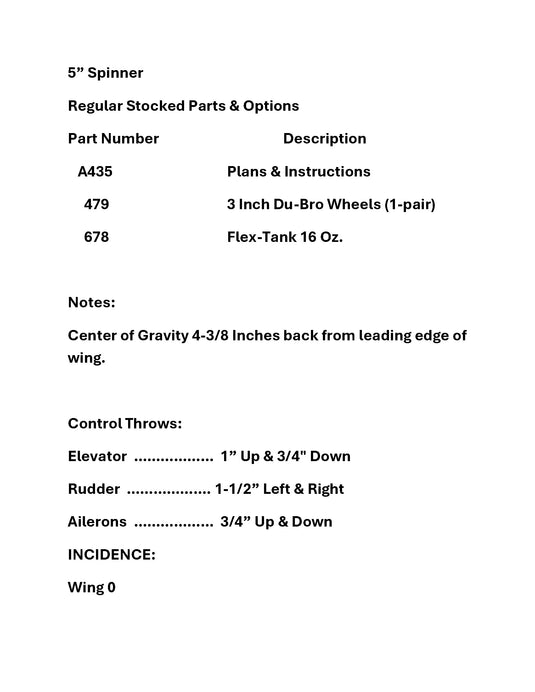

5” Spinner

Regular Stocked Parts & Options

Part Number                                       Description

   A435                                    Plans & Instructions

     479                                     3 Inch Du-Bro Wheels (1-pair)

     678                                     Flex-Tank 16 Oz.

Notes:

Center of Gravity 4-3/8 Inches back from leading edge of wing.

Control Throws:

Elevator  ………………  1” Up & 3/4" Down

Rudder  ………………. 1-1/2” Left & Right

Ailerons  ………………  3/4” Up & Down

INCIDENCE:

Wing 0

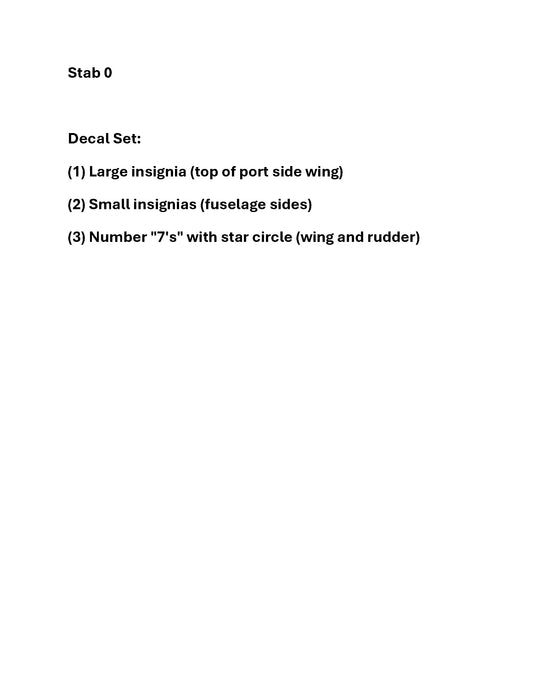

Stab 0

Decal Set:

(1) Large insignia (top of port side wing)

(2) Small insignias (fuselage sides)

(3) Number "7's" with star circle (wing and rudder)
