The Stingray is a perfect sport model for any day of the week. The highly efficient wing tip end plates and mid wing design make its flight performance nothing less than fantastic. Its quick and easy build design make it great for a modeler who is building his first kit or one who just wants a fun plane they can get in the air fast. The Stingray makes a great aerobatic trainer at a fraction of the cost of most aerobatic planes. With new updates to include options for flaps and tail mounted servos, installing a gas engine will help to keep fuel costs down. Its light weight creates a great platform for an electric conversion and also helps allow the Stingray to have superb low speed stability.

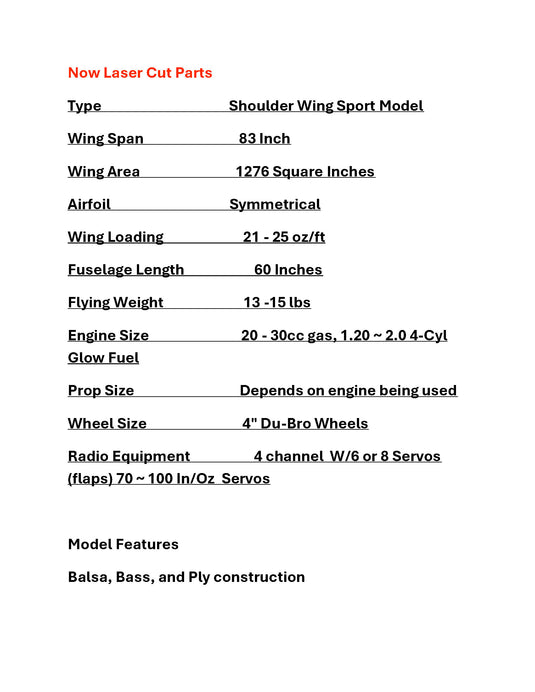

Type Shoulder Wing Sport Model
Wing Span 83 Inch
Wing Area 1276 Square Inches
Airfoil Symmetrical
Wing Loading 21 - 25 oz/ft
Fuselage Length 60 Inches
Flying Weight 13 -15 lbs
Engine Size 20 - 30cc gas, 1.20 ~ 2.0 4-Cyl Glow Fuel
Prop Size Depends on engine being used
Wheel Size 4" Du-Bro Wheels
Radio Equipment 4 channel W/6 or 8 Servos (flaps) 70 ~ 100 In/Oz Servos
Model Features
Balsa, Bass, and Ply construction

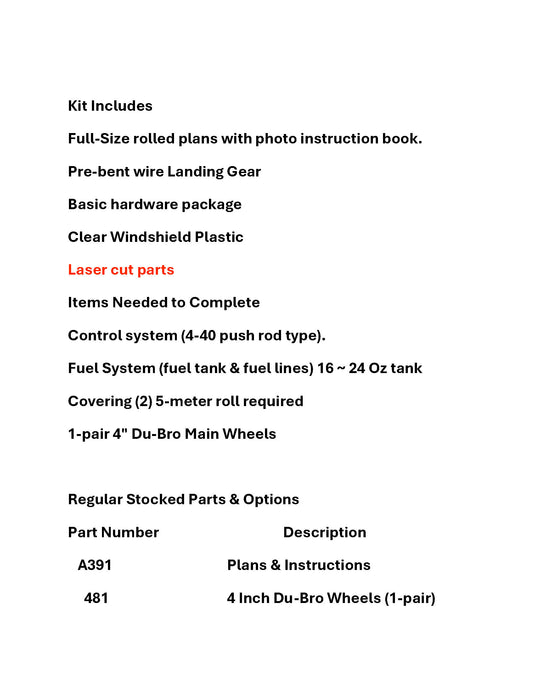

Kit Includes
Full-Size rolled plans with photo instruction book.
Jig & Laser cut parts
Pre-bent wire Landing Gear
Basic hardware package
Clear Windshield Plastic
Items Needed to Complete
Control system (4-40 push rod type).
Fuel System (fuel tank & fuel lines) 16 ~ 24 Oz tank
Covering (2) 5-meter roll required
1-pair 4" Du-Bro Main Wheels
Regular Stocked Parts & Options
Part Number Description
A391 Plans & Instructions
481 4 Inch Du-Bro Wheels (1-pair)

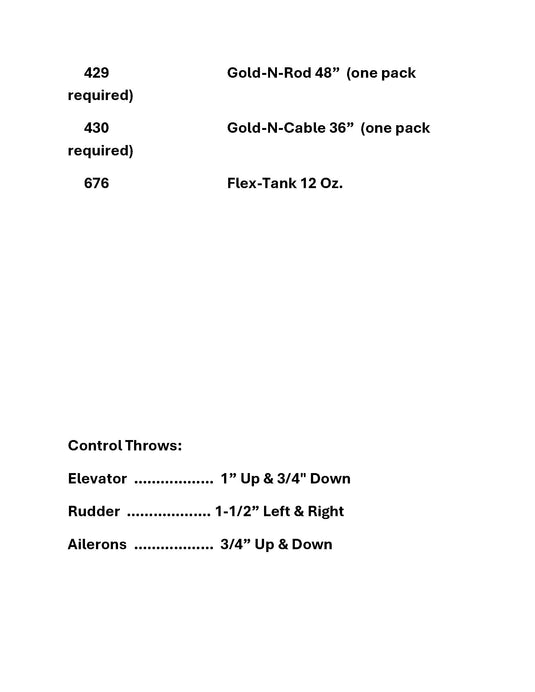

429 Gold-N-Rod 48” (one pack required)
430 Gold-N-Cable 36” (one pack required)
676 Flex-Tank 12 Oz.
Notes:
Center of Gravity 4-3/8 Inches back from leading edge of wing.
