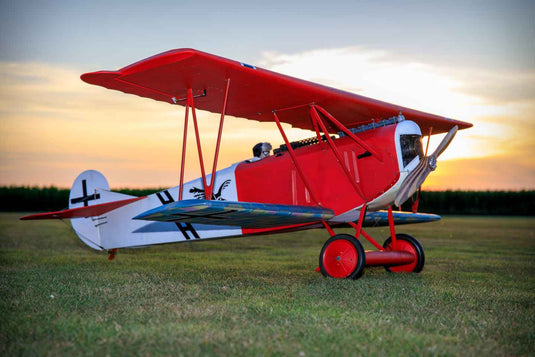

1/3 Scale Fokker D-Vll

Type                                                    German Built 1/3 scale WW-I Biplane Fighter

Wing Span Top                                   118 Inches

Wing Span Bottom                             93 Inches

Wing Cord Top                                   21 Inches

Wing Cord Bottom                             16 Inches

Wing Area                                          3818 Sq. inches total

Airfoil                                                 Flat Bottom

Tail Span                                             40-3/4 Inches

Wing Loading                                     24 ~ 27 Oz / Sq. Foot

Flying Weight                                     40 to 45 Lbs

Fuselage length                                   91 inches

Height                                                 36-1/2 inches flight ready, 24 inches no gear

Engine Size                                         3.5 ~ 6 Cubic Inch or 60 ~ 80cc

Radio Gear                                          4-Channel W/6 Servos (100 ~150 Oz Torque min.)

Inside Cowl Dimension                      9 X 16-1/2

Scale size Prop                                    36” Dia.

Model Features

Balsa, Bass, and Plywood Construction.

Separate “plug in” wing panels (4) W/ aluminum joiner tubes

Bungee cord suspension on main gear, spring loaded tail skid.

Built up wooden cowl W/ radiator screen

Dummy engine

Kit includes

Full Size rolled Plans & Photo Instructions.

Name Brand Hardware and custom made steel fittings.

Pre-Bent wire landing gear and cabane struts.

Items Needed to Complete

Control System, 4-40 Push Rods, or a Pull / Pull Cable system

Fuel System, fuel tank and fuel lines

Covering (4) 5-meter rolls.

1 Pair Du-Bro 9-3/8 Vintage Wheels,

Notes

Center of Gravity                  5-1/2 inches back from Leading Edge of Top Wing

Control Throws:                                                       Incidence:

Elevator  ………..  2-1/2” Up & Down Top Wing  …………… +1~2 Degrees

Rudder  …...……  4” Left & Right                Bottom Wing  ………..  -1~0.0 Degrees

Ailerons  ………..  1-3/4” Up & Down  Tail  …………….……..  0.0 Degrees

Aileron Differential  ……………...  2” Up & 3/4” Down

Engine Thrust Line  ……………...  2 Degrees DOWN,  1 Degrees RIGHT

1/3 Scale Fokker D-VII Decals “German, Late War Lateen (straight) Crosses”

(2)       Large 20 Inch Crosses with White Outlines ………....  Top of Top Wing

(2)       Smaller 14-1/2 Inch Crosses with White Outlines …… Bottom of Bottom Wing

(2)       Small 10-3/4 Inch Crosses with White Outlines ……... Fuselage Sides

(2)       Small 9 Inch Crosses NO White Outlines …………..... Rudder
