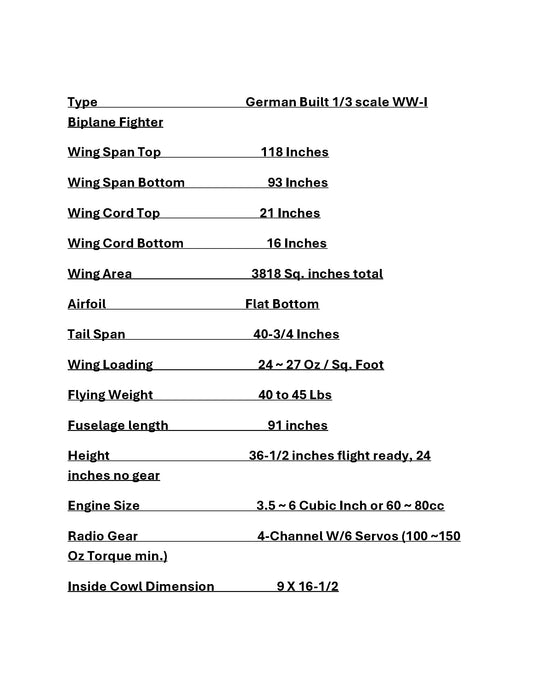

Type German Built 1/3 scale WW-I Biplane Fighter
Wing Span Top 118 Inches
Wing Span Bottom 93 Inches
Wing Cord Top 21 Inches
Wing Cord Bottom 16 Inches
Wing Area 3818 Sq. inches total
Airfoil Flat Bottom
Tail Span 40-3/4 Inches
Wing Loading 24 ~ 27 Oz / Sq. Foot
Flying Weight 40 to 45 Lbs
Fuselage length 91 inches
Height 36-1/2 inches flight ready, 24 inches no gear
Engine Size 3.5 ~ 6 Cubic Inch or 60 ~ 80cc
Radio Gear 4-Channel W/6 Servos (100 ~150 Oz Torque min.)
Inside Cowl Dimension 9 X 16-1/2

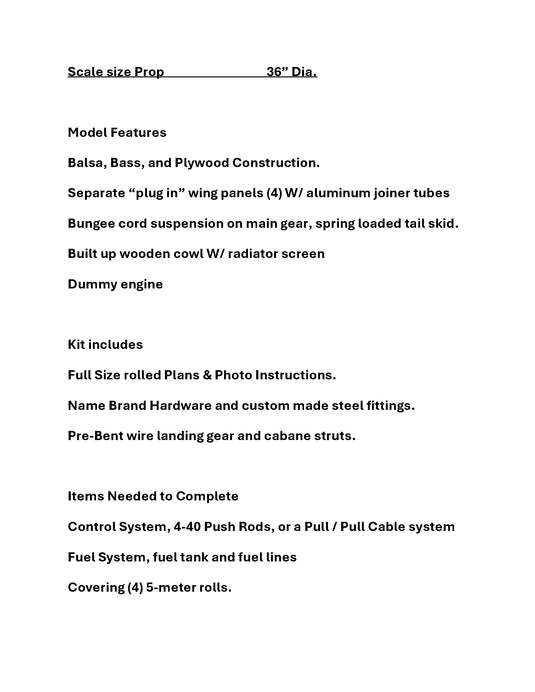

Scale size Prop 36” Dia.
Model Features
Balsa, Bass, and Plywood Construction.
Separate “plug in” wing panels (4) W/ aluminum joiner tubes
Bungee cord suspension on main gear, spring loaded tail skid.
Built up wooden cowl W/ radiator screen
Dummy engine
Kit includes
Full Size rolled Plans & Photo Instructions.
Name Brand Hardware and custom made steel fittings.
Pre-Bent wire landing gear and cabane struts.
Items Needed to Complete
Control System, 4-40 Push Rods, or a Pull / Pull Cable system
Fuel System, fuel tank and fuel lines
Covering (4) 5-meter rolls.
1 Pair Du-Bro 9-3/8 Vintage Wheels,

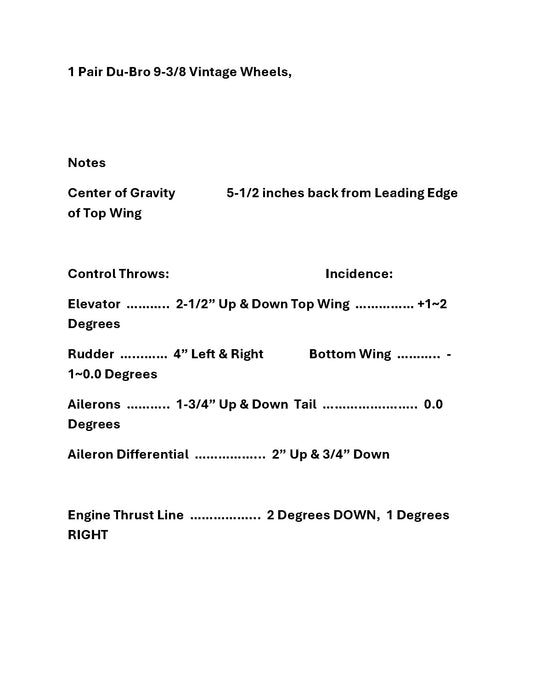

Notes
Center of Gravity 5-1/2 inches back from Leading Edge of Top Wing
Control Throws: Incidence:
Elevator ……….. 2-1/2” Up & Down Top Wing …………… +1~2 Degrees
Rudder …...…… 4” Left & Right Bottom Wing ……….. -1~0.0 Degrees
Ailerons ……….. 1-3/4” Up & Down Tail …………….…….. 0.0 Degrees
Aileron Differential ……………... 2” Up & 3/4” Down
Engine Thrust Line ……………... 2 Degrees DOWN, 1 Degrees RIGHT

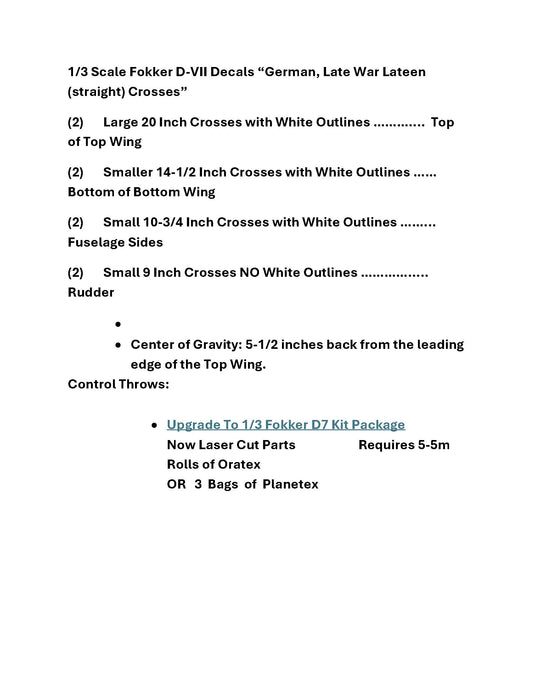

1/3 Scale Fokker D-VII Decals “German, Late War Lateen (straight) Crosses”
(2) Large 20 Inch Crosses with White Outlines ……….... Top of Top Wing
(2) Smaller 14-1/2 Inch Crosses with White Outlines …… Bottom of Bottom Wing
(2) Small 10-3/4 Inch Crosses with White Outlines ……... Fuselage Sides
(2) Small 9 Inch Crosses NO White Outlines …………..... Rudder
|
