Type French Built 1/3 scale WW-I Biplane Fighter
Wing Span Top 107 inches
Wing Span Bottom 102 Inches
Wing Cord Top 16-1/4 Inches
Wing Cord Bottom 13-3/8 Inches
Wing Area 3000 Sq. inches total
Airfoil Flat Bottom
Wing Loading 21-1/2 ~ 24-1/2 Oz / Sq. Foot.
Flying Weight 28 to 32 Lbs
Fuselage length 83 inches
Height 32 inches (flight ready) 18 Inches (No gear)
Engine Size 2.7 ~ 4 Cubic Inch or 45 ~ 65cc
Radio Gear 4-Channel W/6 Servos (100 ~150 Oz Torque min.)
Scale size Prop 32” Dia
Cowl Diameter 13-1/2” in Dia, X 7" Deep
Model Features
Balsa, Bass, and Plywood Construction.
Separate “plug in” wing panels (4) W/ aluminum joiner tubes
Functional Flying Wires.
Bungee cord suspension on main gear.
Kit includes
Full Size rolled Plans & Instructions.
Name Brand Hardware and custom made steel fittings.
Pre-Bent wire landing gear and cabane struts.
Items Needed to Complete
Control System, 4-40 Push Rods, or a Pull / Pull Cable System
Fuel System, fuel tank and fuel lines
Covering (3) 5-meter rolls Required
1 Pair Du-Bro 9.3/8 Vintage Wheels,
Notes
Center of Gravity 6-3/4 inches back from Leading Edge of Top Wing
Control Throws: Incidence:
Elevator ………. 2” Up & Down Top Wing ……..… 1~2 Degrees
Rudder ……… 4” Left & Right, Bottom Wing …. -1~0.0 Degrees
Ailerons ………. 1-3/4” Up & Down Tail ……..…….. +1 Degrees
Aileron Differential ……………... 2” Up & 1” Down (differential recommended)
Engine Thrust Line ……………... 2 Degrees DOWN, 1~2 Degrees RIGHT

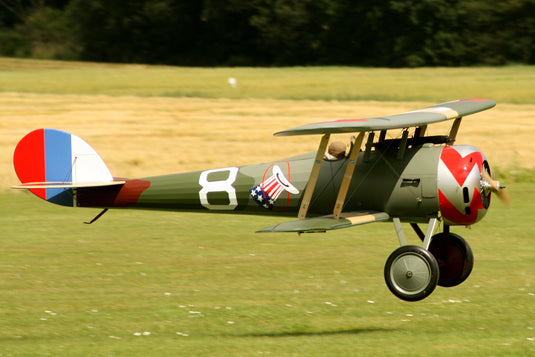

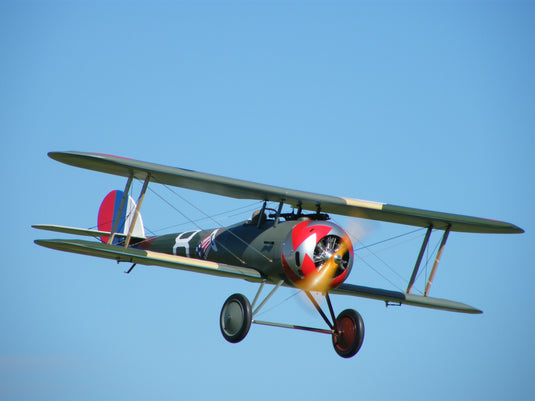

1/3 Scale Nieuport 28 Decals “American” 94th Aero Squadron “Hat in the Ring”
(2) Large Roundels Top of TOP wing …………..…………… 14-1/4 inch
(2) Small Roundels Bottom of BOTTOM Wing ………… …. 11-1/2 Inch
(2) “Hat in the Ring” Fuselage sides 1 Left, 1 ………..………. 9” X 11
|
