| Requires (3)-5m Rolls of Oratex or (2) Bags of 5 meter Planetex |
|
Type French Built 1/3 scale WW-I Biplane Fighter Wing Span Top 107 inches Wing Span Bottom 102 Inches Wing Cord Top 16-1/4 Inches Wing Cord Bottom 13-3/8 Inches Wing Area 3000 Sq. inches total Airfoil Flat Bottom Wing Loading 21-1/2 ~ 24-1/2 Oz / Sq. Foot. Flying Weight 28 to 32 Lbs Fuselage length 83 inches Height 32 inches (flight ready) 18 Inches (No gear) Engine Size 2.7 ~ 4 Cubic Inch or 45 ~ 65cc Radio Gear 4-Channel W/6 Servos (100 ~150 Oz Torque min.) Scale size Prop 32” Dia Cowl Diameter 13-1/2” in Dia, X 7" Deep

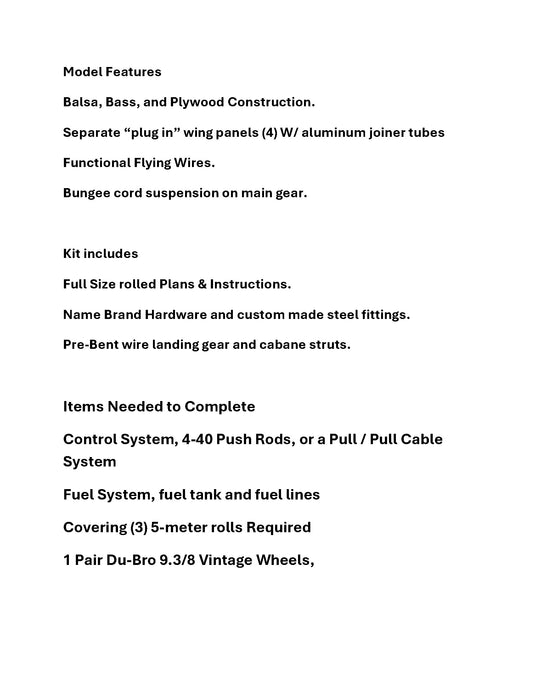

Model Features Balsa, Bass, and Plywood Construction. Separate “plug in” wing panels (4) W/ aluminum joiner tubes Functional Flying Wires. Bungee cord suspension on main gear.
Kit includes Full Size rolled Plans & Instructions. Name Brand Hardware and custom made steel fittings. Pre-Bent wire landing gear and cabane struts.
Items Needed to Complete Control System, 4-40 Push Rods, or a Pull / Pull Cable System Fuel System, fuel tank and fuel lines Covering (3) 5-meter rolls Required 1 Pair Du-Bro 9.3/8 Vintage Wheels,

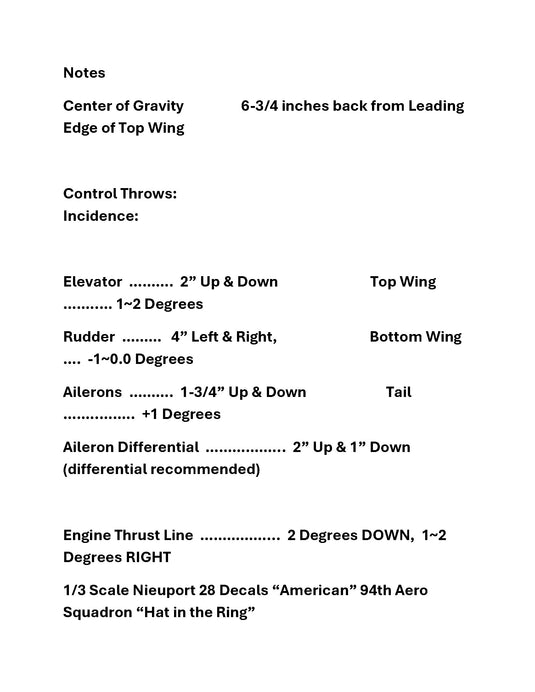

Notes Center of Gravity 6-3/4 inches back from Leading Edge of Top Wing
Control Throws: Incidence:
Elevator ………. 2” Up & Down Top Wing ……..… 1~2 Degrees Rudder ……… 4” Left & Right, Bottom Wing …. -1~0.0 Degrees Ailerons ………. 1-3/4” Up & Down Tail ……..…….. +1 Degrees Aileron Differential ……………... 2” Up & 1” Down (differential recommended)
Engine Thrust Line ……………... 2 Degrees DOWN, 1~2 Degrees RIGHT 1/3 Scale Nieuport 28 Decals “American” 94th Aero Squadron “Hat in the Ring” (2) Large Roundels Top of TOP wing …………..…………… 14-1/4 inch (2) Small Roundels Bottom of BOTTOM Wing ………… …. 11-1/2 Inch (2) “Hat in the Ring” Fuselage sides 1 Left, 1 ………..………. 9” X 11 |
