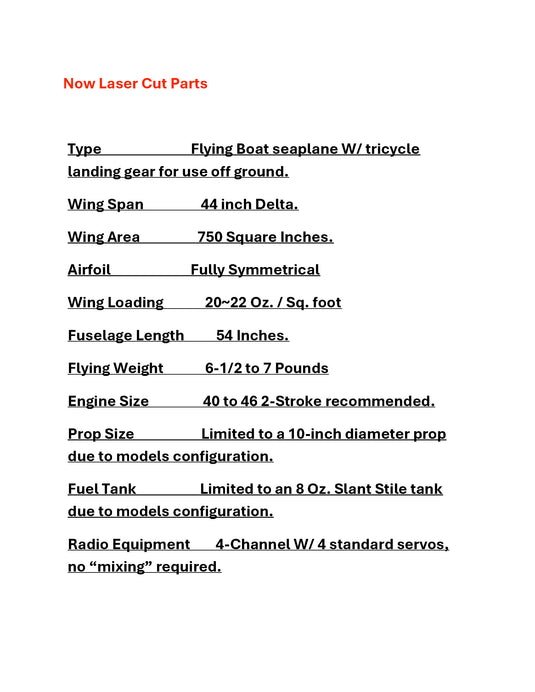

Type                            Flying Boat seaplane W/ tricycle landing gear for use off ground.

Wing Span                  44 inch Delta.

Wing Area                  750 Square Inches.

Airfoil                         Fully Symmetrical

Wing Loading             20~22 Oz. / Sq. foot

Fuselage Length          54 Inches.

Flying Weight             6-1/2 to 7 Pounds

Engine Size                 40 to 46 2-Stroke recommended.

Prop Size                     Limited to a 10-inch diameter prop due to models configuration.

Fuel Tank                    Limited to an 8 Oz. Slant Stile tank due to models configuration.

Radio Equipment        4-Channel W/ 4 standard servos, no “mixing” required.

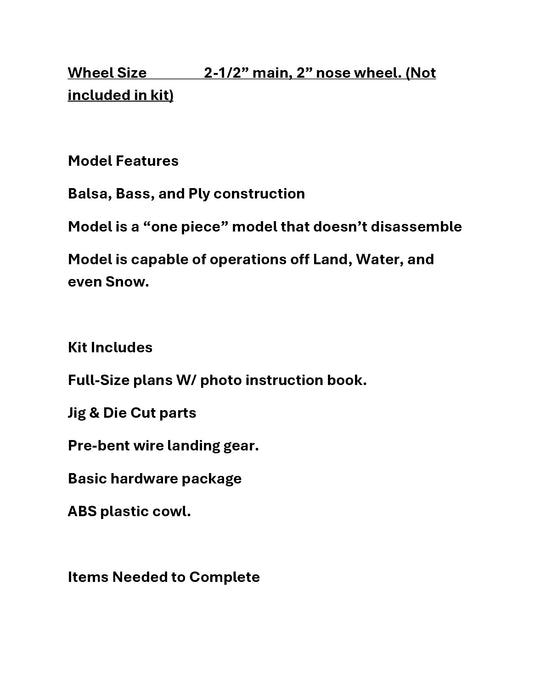

Wheel Size                  2-1/2” main, 2” nose wheel. (Not included in kit)

Model Features

Balsa, Bass, and Ply construction

Model is a “one piece” model that doesn’t disassemble

Model is capable of operations off Land, Water, and even Snow.

Kit Includes

Full-Size plans W/ photo instruction book.

Jig & Die Cut parts

Pre-bent wire landing gear.

Basic hardware package

ABS plastic cowl.

Items Needed to Complete

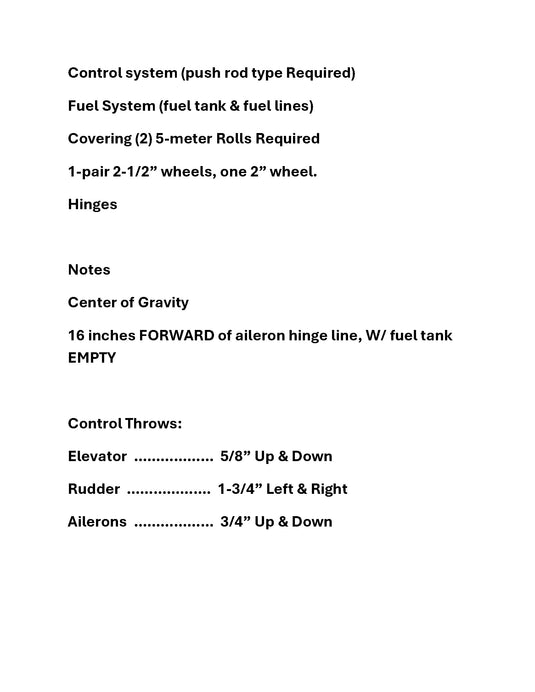

Control system (push rod type Required)

Fuel System (fuel tank & fuel lines)

Covering (2) 5-meter Rolls Required

1-pair 2-1/2” wheels, one 2” wheel.

Hinges

Notes

Center of Gravity

16 inches FORWARD of aileron hinge line, W/ fuel tank EMPTY

Control Throws:

Elevator  ………………  5/8” Up & Down

Rudder  ……………….  1-3/4” Left & Right

Ailerons  ………………  3/4” Up & Down
