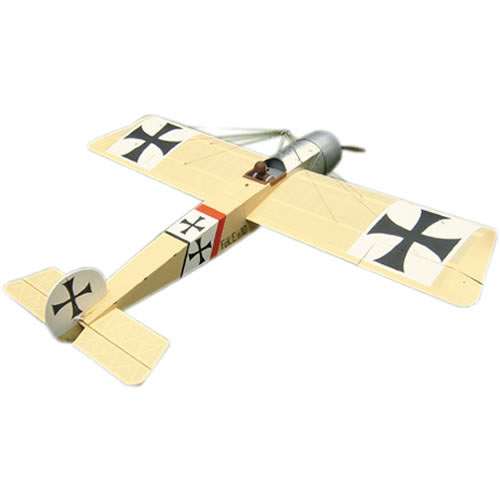

Upgrade To The Fokker Eindecker Kit Package Now Laser Cut Parts
|
Type German Built WW-I fighter Wing Span 80 Inches (14-7/8” cord) Wing Area 1155 Square Inches total. Airfoil Flat Bottom Wing Loading 16 Oz. / Sq. Foot Fuselage Length 56-1/2 Inches. Flying Weight 7-1/2 to 8 Pounds. Engine Size .46 ~ .60 2-Stroke / .61 ~ .91 4-stroke Prop Size Depends on engine being used Fuel Tank 8 ~ 12 Oz. Radio Equipment 4-Channel W/ 5 servos Servo Requirements 5 Standard servos (2 servos required for ailerons) Wheel Size 4-3/8” vintage (Not included in kit) Cowl Diameter 7-3/8” X 5-1/2 Deep |
-
Center of Gravity: 4-1/8 inches back from the leading edge of the Wing.
-
Control Throws:
-
Elevator: 1 inch up and down.
-
Rudder: 2 inch left and right.
-
Ailerons: 3/4 inch up and down.
-
Aileron Differential: 1 inch up and 3/4 inch down (differential recommended).
- Engine Thrust Line: 1-2 Degrees DOWN, 1 Degree RIGHT.
